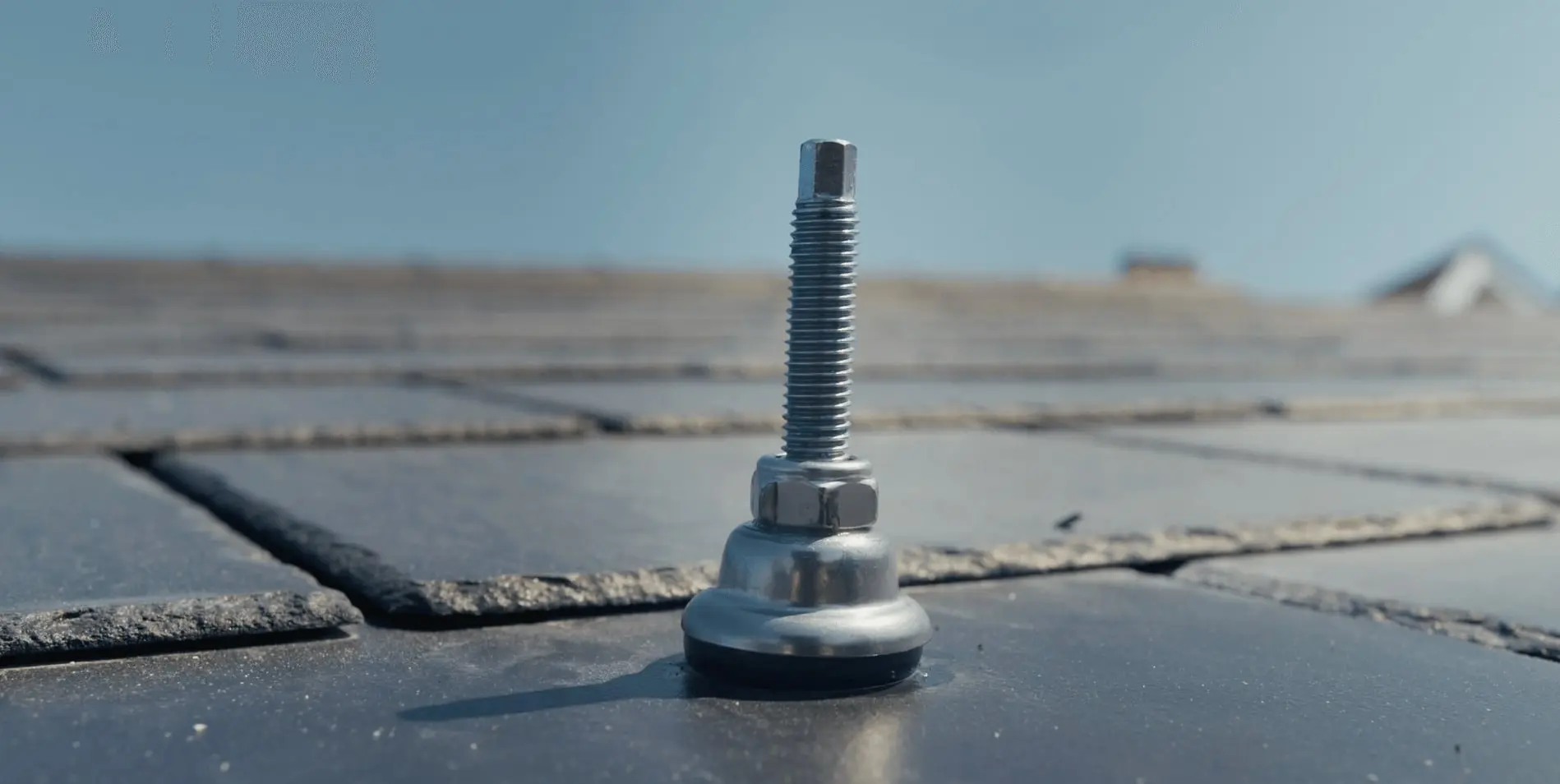

Low Profile
Sleeker installations. Happier customers. Envious neighbours.
Fast
A team of 2 can install 4 mounts in less than two minutes.
Sealed by Expansion
Leak-proof solar mounting. IPX8 rated.
Fire Safety Compliant
Airtight VMQ seal, no open air void in the roof. Does not reduce the fire rating of the roof. MCS 012 3.0 certified.
MCS_012 3.0 Certified
BBA Certificate 7460. Certified as a component — compatible with any MCS certified rail system.
Easy & Repeatable
If you can use a drill and tighten a nut, you can install the SolVe Mount perfectly.
Engineering Proof
Built to Last
Every claim backed by test reports, Eurocodes, and ISO standards.
8.2×
IPX8 Seal Margin
The seal withstands 8.2 times the dynamic pressure of 100 mph wind-driven rain — verified by submerging 1 m under water for an extended period.
Full engineering breakdown+33%
A4-80 Bolt Strength
A4-80 marine-grade stainless steel carries 33% higher proof strength than the A2-70 grade used in standard solar mounting hardware.
Full engineering breakdown✓
Fire Safe
Airtight VMQ seal, no open air void in the roof. Does not reduce the fire rating of the roof. MCS 012 3.0 certified.
Full engineering breakdownPetersfield Hospital Installation

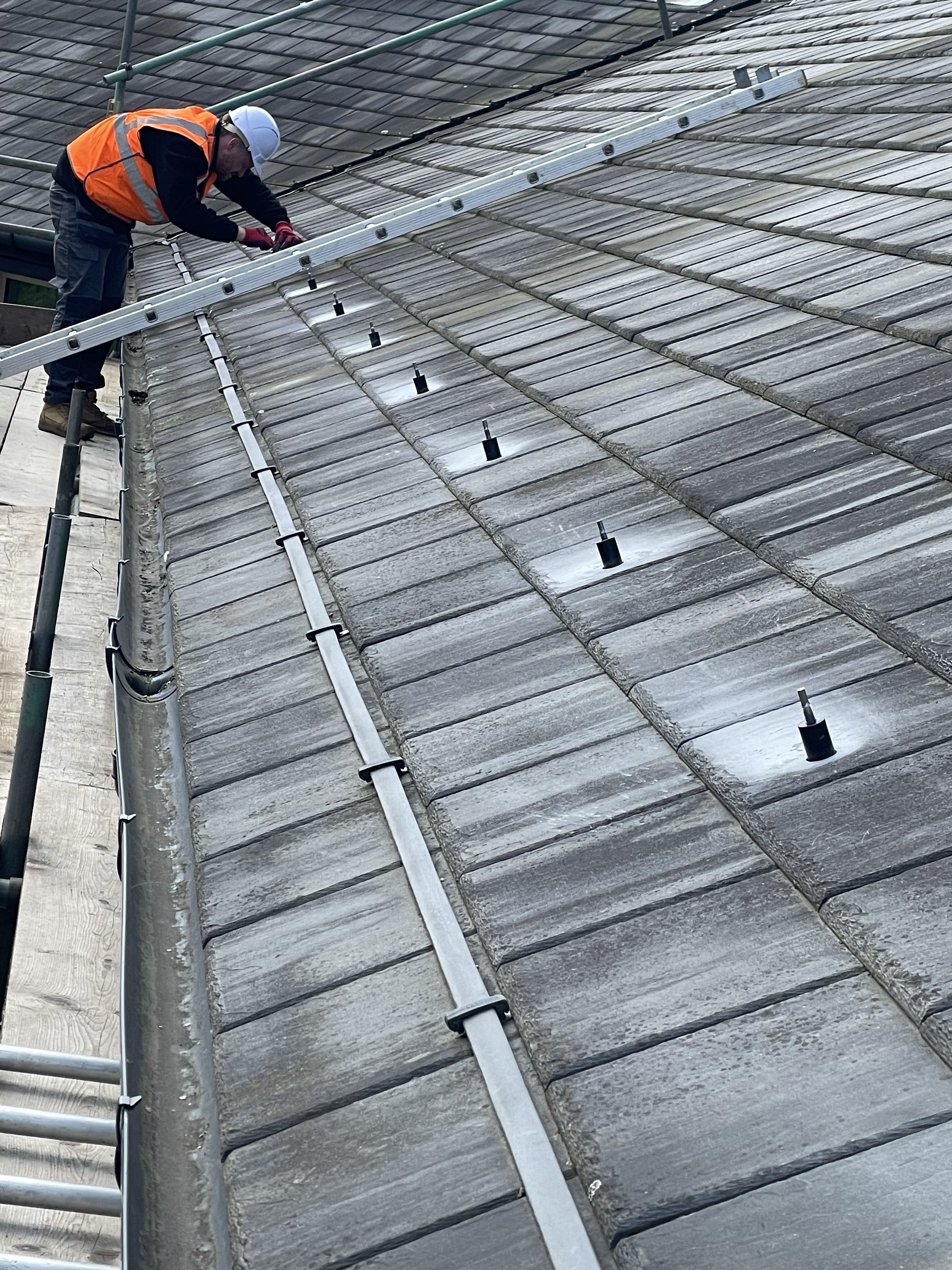

930 mounts installed on a live NHS hospital roof on Cambrian interlocking slate. See the Core-All, Drill-All, Fix-All workflow in action.
Cambrian interlocking slate — 930 mounts. NHS Petersfield Hospital, Hampshire.
Core. Drill. Fix. Twist. Done.
Five steps. Under 60 seconds. No tile removal, no flashing, no drilling through the roof covering, no specialist roofing knowledge required.

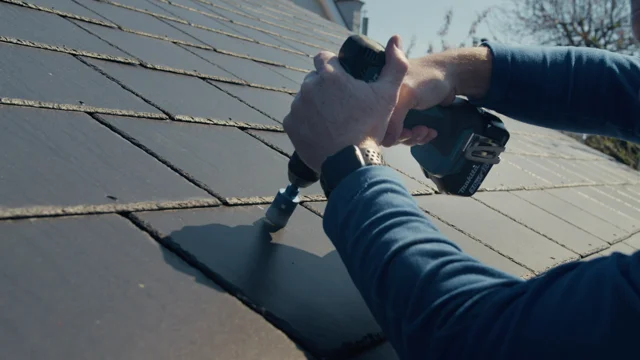

Core
Core a 28mm hole through the roof covering using a diamond hole saw. No tile lifting. No drilling.

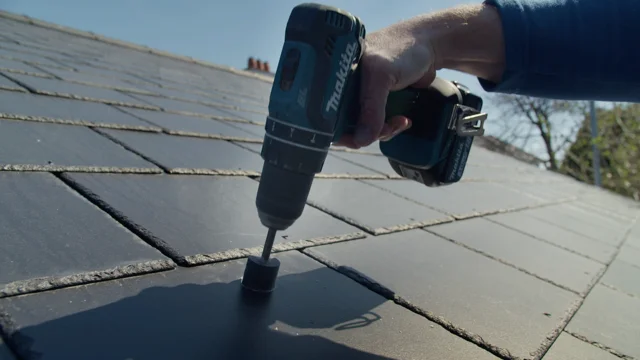

Drill
Insert the drill guide provided and pre-drill the rafter to a depth of 70mm

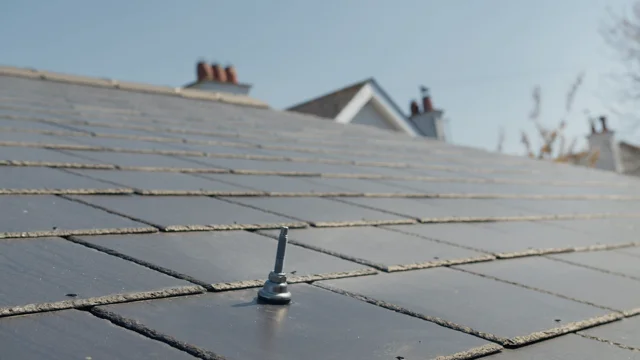

Fix
Drive in the pre-assembled SolVe Mount
Twist
Twist the seal to adjust the height. The seal should protrude 30-35mm above the roof covering
Done
Cap on and tighten the flange or Nylock nut to compress the seal and cause expansion. Done
The SolVe Difference
"Your installers know how to install it before they've seen a single tile."
One system. Any roof. The same five steps — every time. SolVe Mount is the first mounting system a crew learns once and applies to every job they'll ever take on.
Built for Installers. Proven on Every Roof.
No Tile Removal
Core through the covering, fix into the rafter. No lifting, no flashing, no risk of tile breakage on site.
One SKU Fits All
One mount for every discontinuous roof covering. No more arriving on site with the wrong product.
5× Pull-Out Strength
968 kg pull-out capacity — five times stronger than a traditional hook. Install closer to the edge with fewer mounts.
Expands, Not Compresses
The expansion seal creates an airtight lock from the inside. No load transferred to the covering — no leaks.
Fire Safety Compliant
Airtight VMQ seal, no open air void in the roof. Does not reduce the fire rating of the roof. MCS 012 3.0 certified.
60 Seconds Per Mount
Core-All, Drill-All, Fix-All workflow. Batch your way through the roof for maximum crew efficiency.
Fit & Forget
A4-80 marine grade stainless steel. Proprietary synthetic seal engineered to last 100+ years.
MCS_012 3.0 Certified
BBA Certificate 7460. Certified as a component — compatible with any MCS certified rail system.
Trusted & Certified
Guaranteed Quality
Rigorous testing ensures longevity. UK manufacturing standards ensures quality control.
Easy Compliance
Meets all UK building standards, including the 2024 Fire Safety Standard and MCS 012 3.0
Full Documentation
Comprehensive guides available.
One Mount. Every Discontinuous Roof.
Check full compatibility on the Roof Coverings page.
Real Installations. Real Proof.
See how the SolVe Mount has transformed installations on some of the most challenging roof types in the UK.
Download Technical Documents
MCS Certificate and Installer Checklist require your email — we'll only send technical updates when new documents are published.
Quick Installation Guide
Step-by-step on-roof installation instructions for the Universal SolVe Mount.
Installer Checklist
On-site pre-install checklist — tools, torque values, and sign-off record.
MCS/BBA Certificate
BBA Certificate 7460 — MCS_012 3.0 compliance documentation.
Product Datasheet
Full technical specifications for the Universal SolVe Mount.
